SCALPEL Project to Develop Scalable Microfluidic Platform that Analyzes and Sorts Single Cells to greatly simplify Cancer Research and Treatment follow up.

Imec’s Liesbet Lagae Awarded Prestigious European Research Council Grant

Imec, a world leading nanoelectronics research center, proudly announces that Prof. Dr. Liesbet Lagae, R&D Manager Life Science Technologies at imec and professor in Nanobio Physics at KU Leuven, has been awarded a Consolidator Grant for her research project SCALPEL* by the European Research Cou…

15.10.2013

New Center will offer the global semiconductor ecosystem crucial patterning knowledge for sub-10nm technologies

ASML and imec launch Advanced Patterning Center

On October 7, ASML and imec announced the next major step in their extensive collaboration, with the launch of the Advanced Patterning Center. Together they plan to tackle upcoming scaling challenges due to the chip industry’s move towards single digit nanometer dimensions. The Center will be loca…

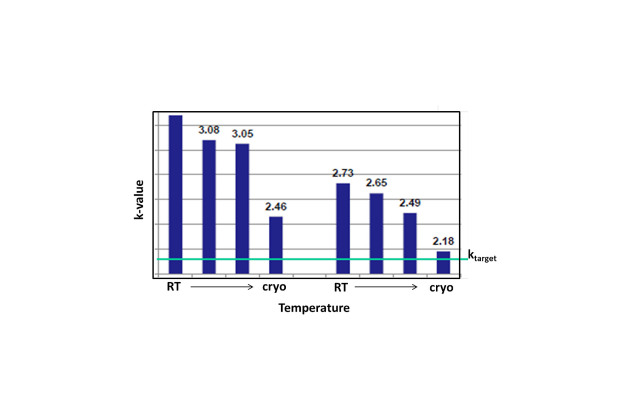

Graph: Etching at cryogenic temperature results in targeted k-value

16.07.2013

New method allows IC manufacturers to reach scaling levels at 20nm and beyond, without compromising speed and device cross-talk

Imec reveals method of damage free cryogenic etching of ultralow-k dielectrics

Imec today announced a cryogenic etching method that protects the surface of porous ultralow-k dielectrics against excessive plasma induced damages.

As semiconductor technology scales below the 20nm node, the capacitance increases between nearby conductive portions of high-density integrated circuits…
